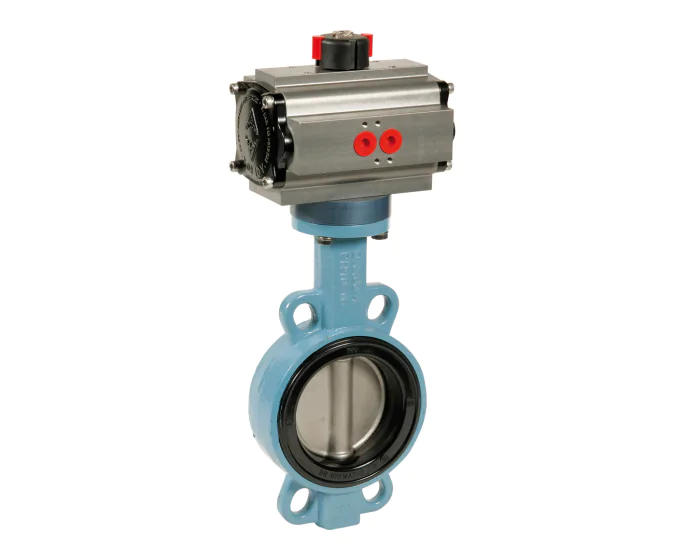

The 1158 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features an aluminuim bronze disc, up to DN300. It is a wafer type, PN10/16 and ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| Lockable | Yes |
| ATEX compatible | Yes |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Seat | NBR |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Surface temperature | TX |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1.2.21.22 |
| Warranty period | 2 years |
| CE | Risk category I |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 Double acting | 260513015100 | S1003219 |
€302.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 Spring return | 260513016101 | S1003220 |
€356.21
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Double acting | 260514015100 | S1003221 |
€302.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Spring return | 260514016101 | S1003222 |
€359.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Double acting | 260515015101 | S1003223 |
€362.96
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Double acting | 260516015101 | S1003224 |
€408.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Spring return | 260516016102 | S1003225 |
€471.00
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Double acting | 260517015102 | S1003226 |
€470.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Spring return | 260517016103 | S1003227 |
€554.50
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Double acting | 260518015102 | S1003228 |
€520.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Spring return | 260518016104 | S1003229 |
€688.93
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Double acting | 260519015103 | S1003230 |
€635.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Double acting | 260520015104 | S1003231 |
€833.44
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting DN250 - 10'' | 260521015105 | S1003232 |
€1,344.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting DN300 - 12'' | 260522015106 | S1003233 |
€1,839.17
(excl. btw)
|
add to cart |
